 Post subject: Datsun Z with E85, GT42R dyno results
PostPosted: Wed Oct 22, 2008 6:38 am
Offline
founding member

Joined: Mon Feb 25, 2008 6:20 pm
Posts: 188
Location: Dearborn, Michigan
Well, I finally got a chance to get my car back to the dyno, just to confirm my suspicions on the E85 conversion I did over the winter. Very pleased with the results. This was on a stroked L-series, not an RB-series, btw.

The major changes since last year
( http://forums.hybridz.org/showthread.ph ... light=dyno" ) consisted mainly of:


  • actually dialing in the cam correctly (it appears to have been retarded quite a bit before)
  • Switching to E85 - actually more like E70 now (winter mix)
I made a few other changes, mostly with high rpm longevity in mind:
  • Kameari mechanical chain tensioner
  • Ferrea super alloy valves
  • titanium retainers
  • lightened/balanced/polished the rockers
  • fresh set of rings/bearings

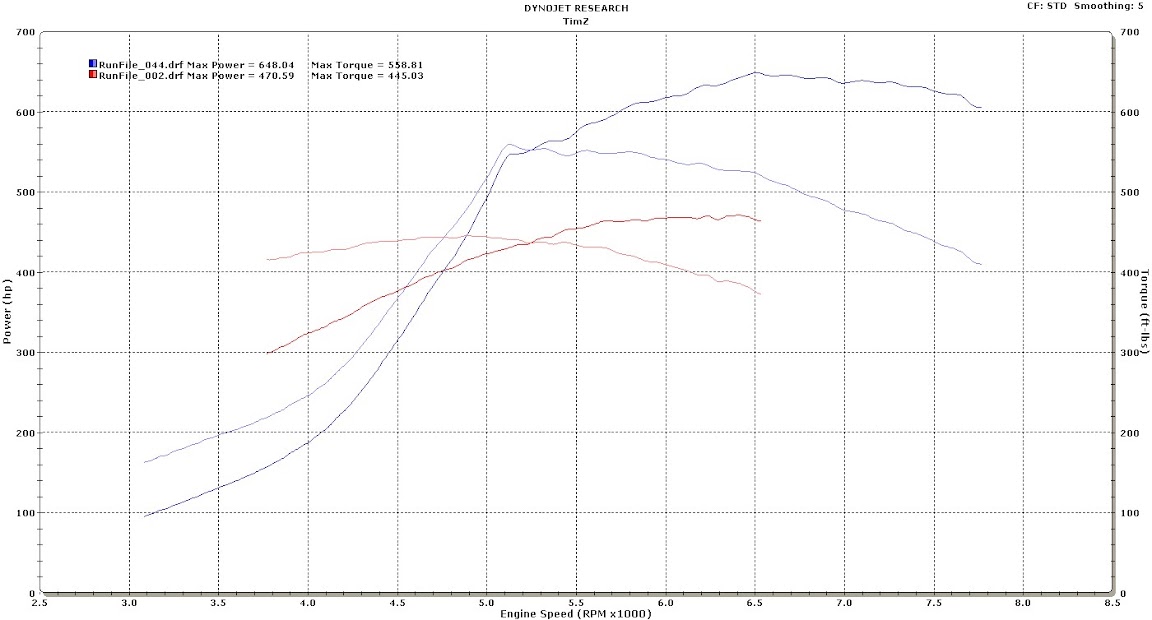

The blue lines were from today on E85, the red from last year on Sunoco 94

I was able to go a few psi higher on E85 - these runs peaked at 29psi vs 26.5 on gas. Running approximately the same boost resulted in 628rwhp peak.

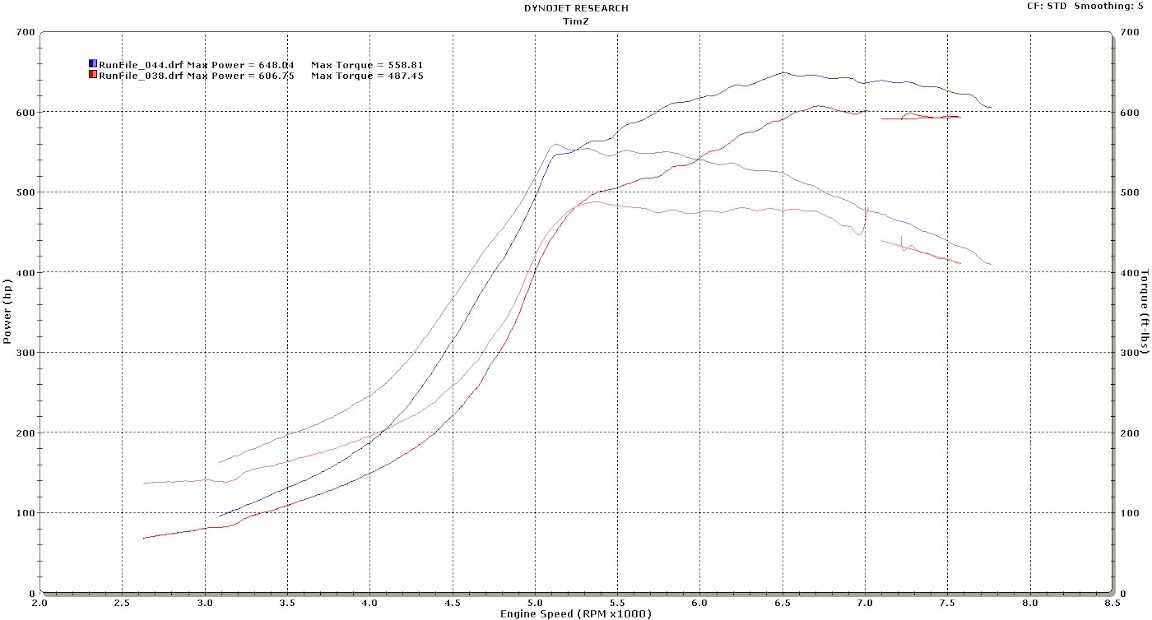

Just to put things into perspective, here it is vs. a stock Z06 on the same dyno...

_________________

Information is not knowledge
Knowledge is not wisdom
Wisdom is not truth
-FZ, Joe's Garage


Last edited by TimZ on Fri Nov 07, 2008 6:18 pm, edited 1 time in total.

Top
 Profile

 Post subject:
PostPosted: Wed Oct 22, 2008 9:21 am
Offline
founding member
User avatar

Joined: Mon Feb 25, 2008 5:13 pm
Posts: 60
Very nice... do you have any traction though? That is a lot of power in a very light car.


Top
 Profile

 Post subject:
PostPosted: Wed Oct 22, 2008 10:45 am
Offline
founding member

Joined: Mon Feb 25, 2008 6:20 pm
Posts: 188
Location: Dearborn, Michigan
4SFED4 wrote:
Very nice... do you have any traction though? That is a lot of power in a very light car.


I just switched to Mickey Thonpson ET Streets in 275/40-17. Amazing amount of traction - when the weather is above 75 degF or so, I get almost full traction in 1st and full traction in 2nd. I was shocked at how big a difference they made. The previous tires were Kumho V700s and I was having problems even in 3rd at times.

_________________

Information is not knowledge
Knowledge is not wisdom
Wisdom is not truth
-FZ, Joe's Garage


Top
 Profile

 Post subject:
PostPosted: Wed Oct 22, 2008 12:01 pm
Offline
Stage 2

Joined: Wed Apr 16, 2008 9:21 pm
Posts: 77
Location: Victoria, BC
Thats awesome Tim. I always wanted to do something wild with an early Z car.

Blaine


Top
 Profile

 Post subject:
PostPosted: Wed Oct 22, 2008 10:13 pm
Offline
Stage 2

Joined: Sat Aug 16, 2008 2:11 pm
Posts: 56
Location: West Chicago, IL
Very nice TIM. i wish the stock charts looked that good :lol:


Top
 Profile

 Post subject:
PostPosted: Thu Oct 23, 2008 6:49 pm
Offline
Site Owner
User avatar

Joined: Tue Feb 19, 2008 3:03 am
Posts: 161
Location: Everywhere In, FL
added, great job, and thanks for the post!

_________________
97' Saturd SC2-Turbo
TEC2 + T3/T4 + FMIC
Once again under construction...


Top
 Profile

 Post subject:
PostPosted: Sat Oct 25, 2008 7:05 pm
Offline
founding member

Joined: Mon Feb 25, 2008 6:20 pm
Posts: 188
Location: Dearborn, Michigan
I finally got the video uploaded - the camcorder's battery died about halfway through, but you can still get the gist...

http://www.youtube.com/watch?v=mtygZohgT28

_________________

Information is not knowledge
Knowledge is not wisdom
Wisdom is not truth
-FZ, Joe's Garage
